|    High Capacity IP Backhaul

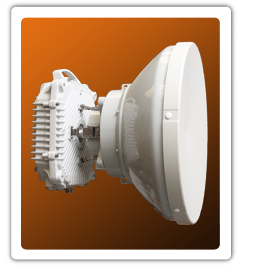

StarLink Microwave Series

The StarLink Microwave Series provides throughput capacity of up to 400 + 400 Mbps (Full Duplex) in licensed bands between 6 and 23 GHz and unlicensed microwave bands at 17 and 24 GHz in a cost-effective and fully featured package.

StarLink Features:

  • Capacity

    • Up to 400 + 400 Mbps capacity (Full Duplex) for IP (Ethernet) transmission

    • Hitless Automatic Adaptive Coding and Modulation (HAACM)

    • Scalable bandwidth (14/28/56 MHz) and flexible modulation order (QPSK-1024QAM) secures link performance



  • Ethernet Payload

    • Compliant with the IEEE 802.1/3 and RFC standards for various Ethernet functionalities.

    • Network synchronization with SyncE

    • QoS (Quality of Service) and VLAN for traffic prioritization

    • Jumbo frame support up to 9600 bytes, layer-2 switching, auto MDI/MDXI, VLAN, QoS, QinQ, STP/RSTP, RLS

    • PoE- one single cable for both traffic and power, with optional Optical GE port

  • Design

    Compact all-outdoor (zero footprint) packet radio solution, combining the advantages of an all-outdoor profile with carrier-grade performance, generates significant CAPEX and OPEX savings.

  • NMS/EMS

    Network and Element Management include Web GUI, SNMP and Telnet
Data Sheet:

StarLink Microwave Series (Unlicensed bands)

5D
